LoRaWAN Gateway - DIY

by RAK
Original price $957.92 - Original price $957.92
Original price
$957.92
$957.92 - $957.92
Current price $957.92
  • Description
  • Specs
  • This package includes an industrial strength LoRaWAN gateway that you can install yourself. It is a DIY option that does not include remote monitoring or prepaid 4G connectivity. You have to provide your own SIM card or set it to use Wi-Fi if you have that on site already.

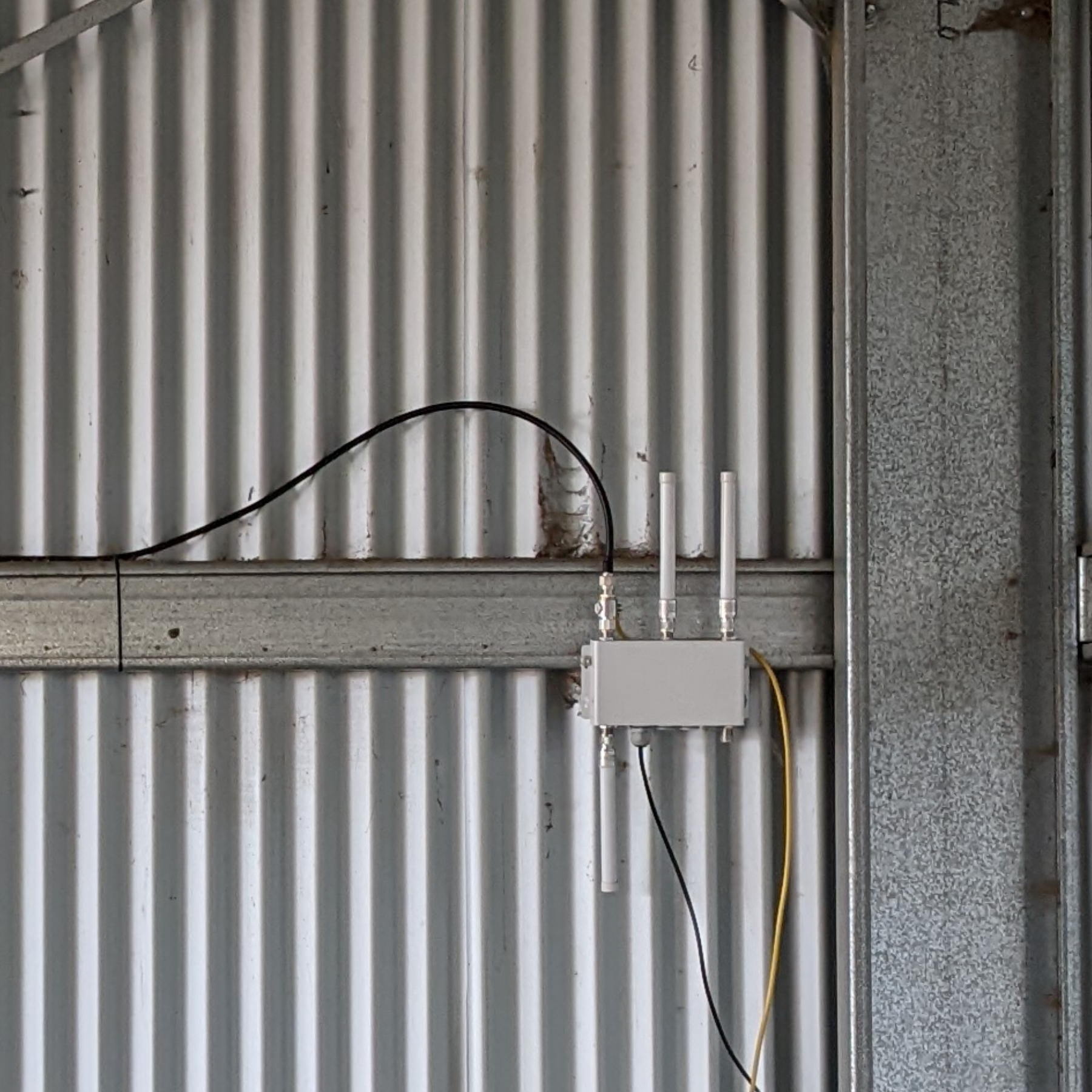

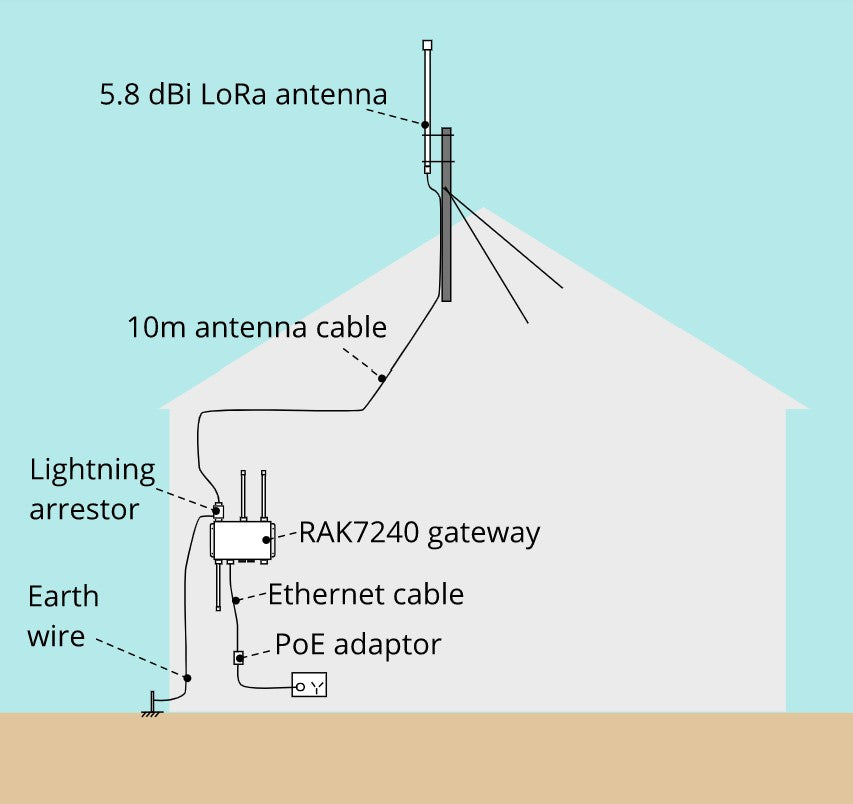

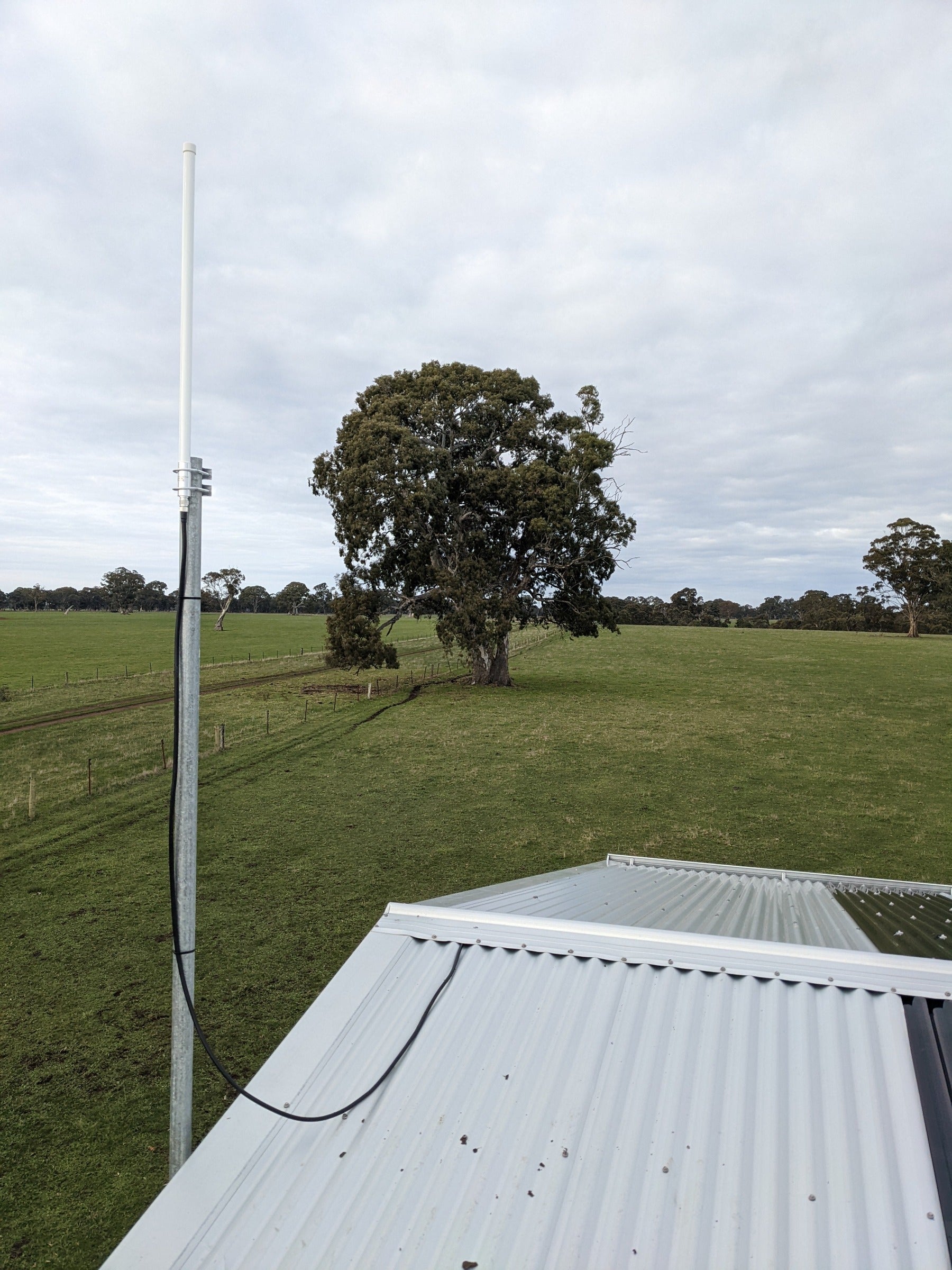

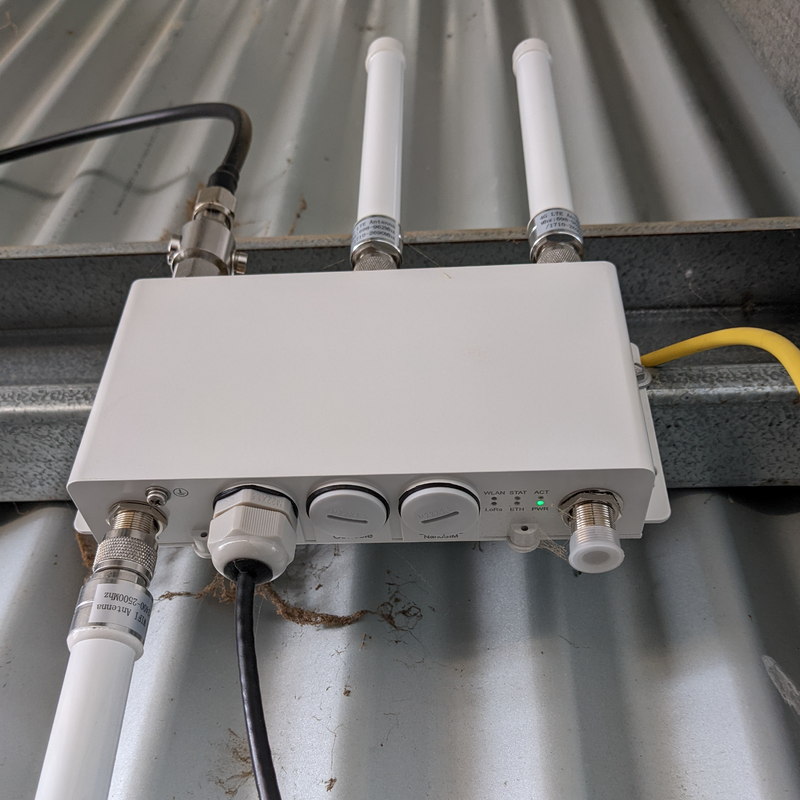

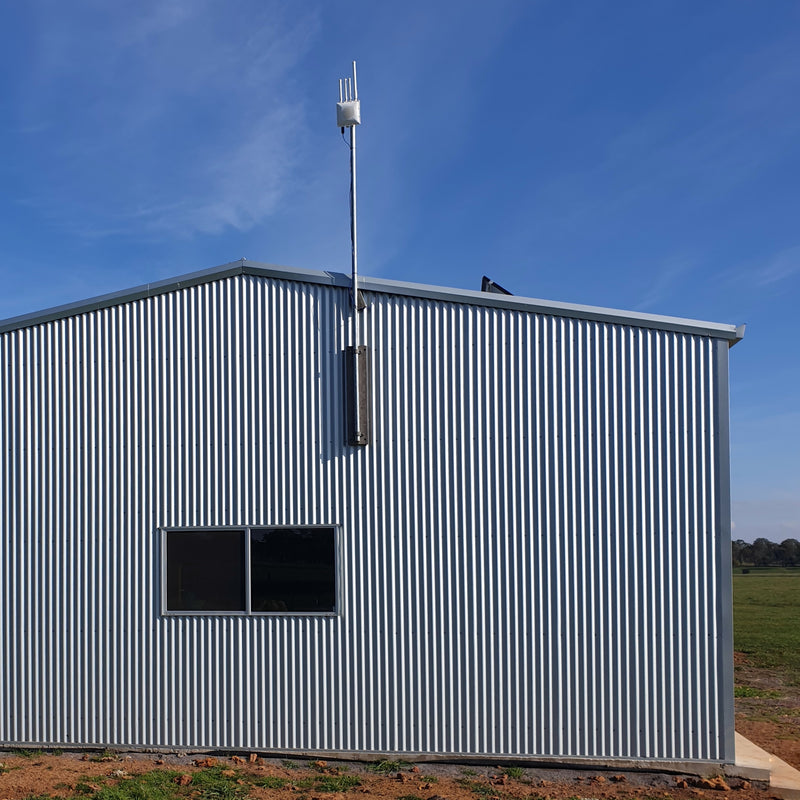

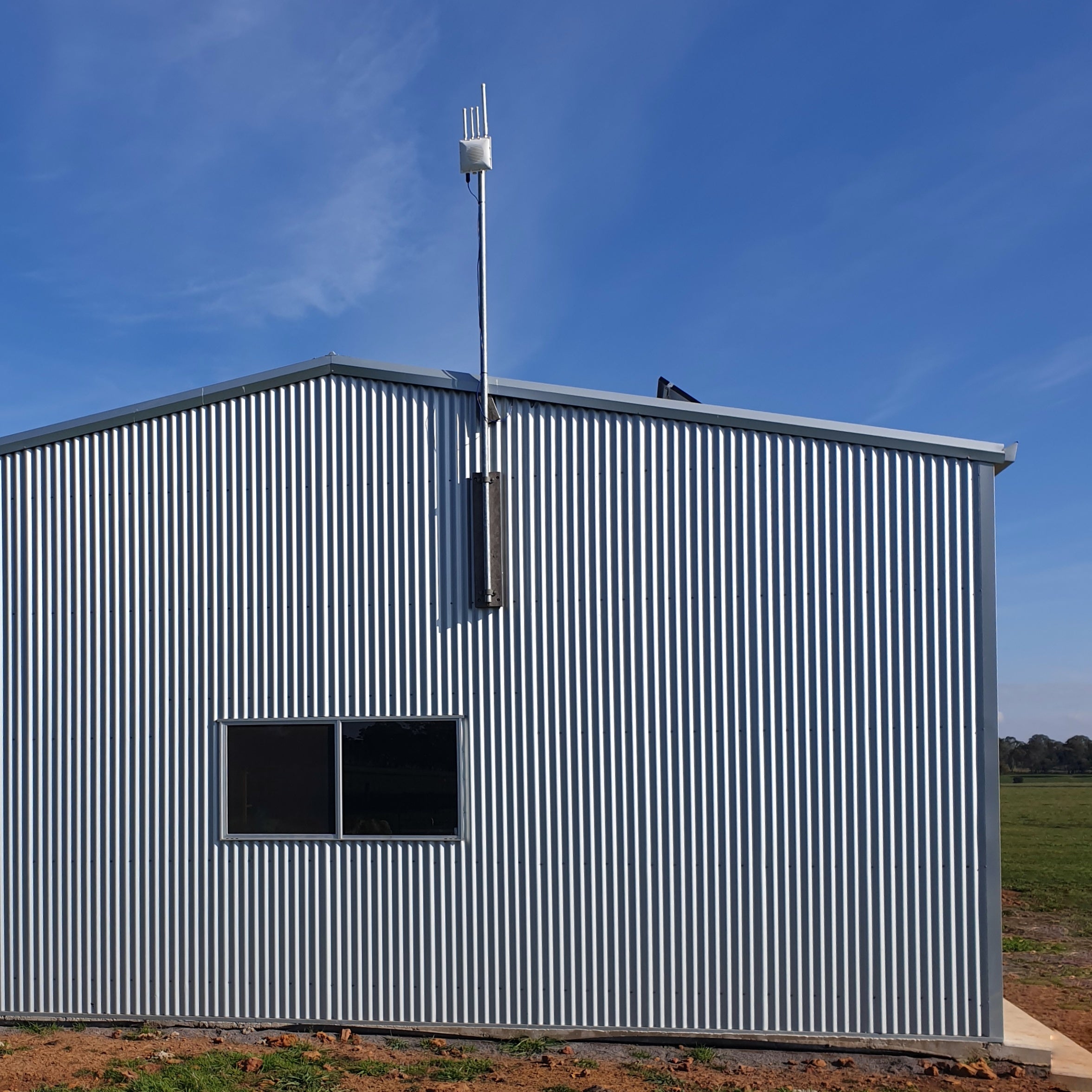

    The gateway can be installed inside for easy access, then use the 10m cable to place the LoRa antenna outside and as high as possible.

    You need to purchase your own data SIM card to put in the gateway (or be in range of Wi-Fi coverage) and have 240V power at the installation site. By default the gateway is configured to work on The Things Network public access servers, which is a free access service but does not include any service level agreements (SLAs). There are alternative service providers that charge a fee for restricted access and guaranteed support and these will be more expensive and more suitable for some end users.

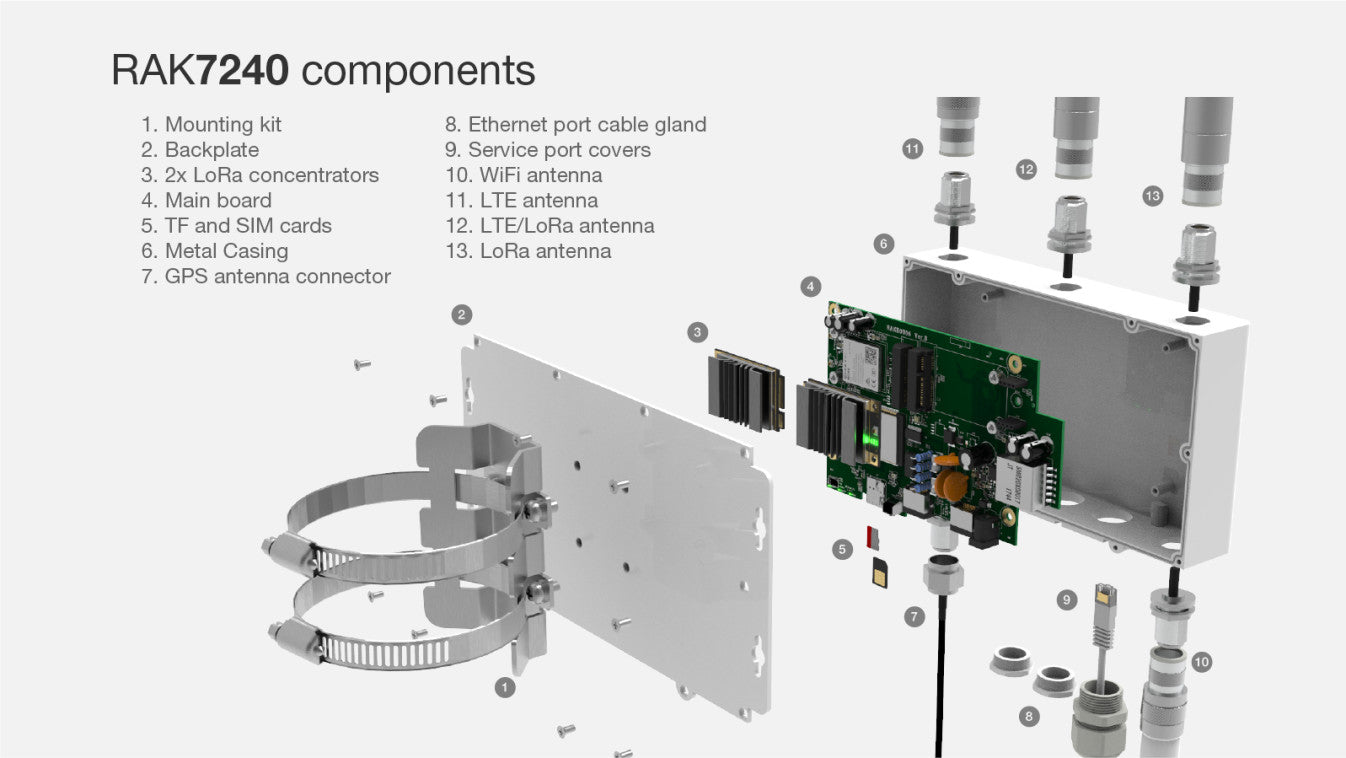

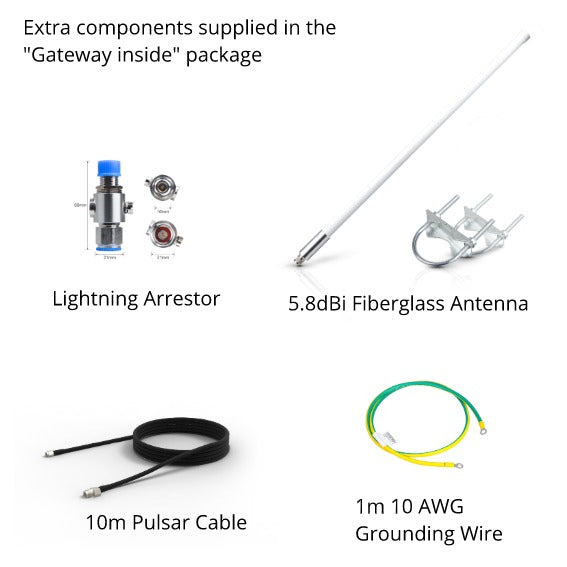

    Includes
    1x 8-channel device with LTE module
    2x LTE Antenna
    1x 2.4G Wi-Fi Antenna
    1x PoE Injector

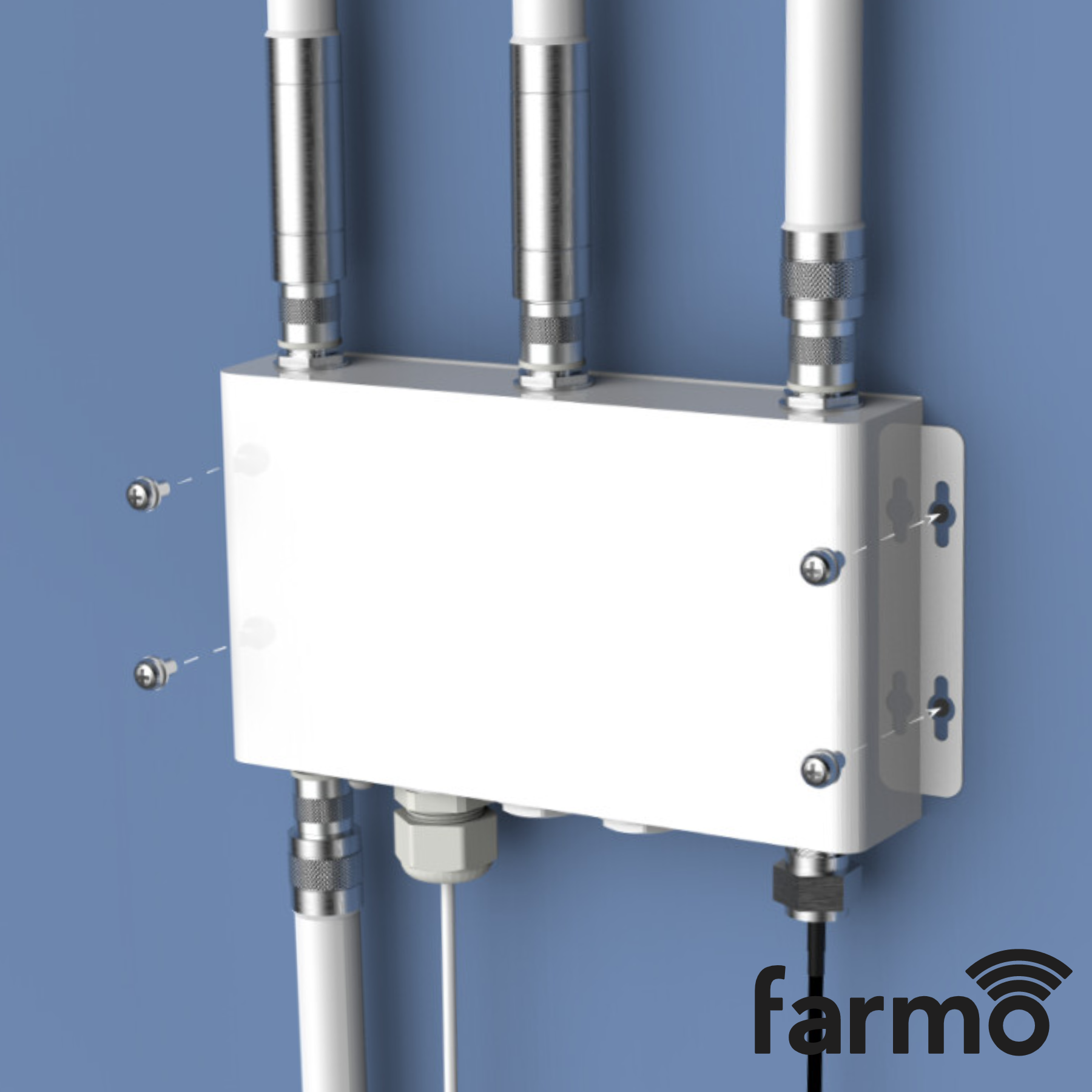

    1x Mounting Kit
    10m ethernet cable

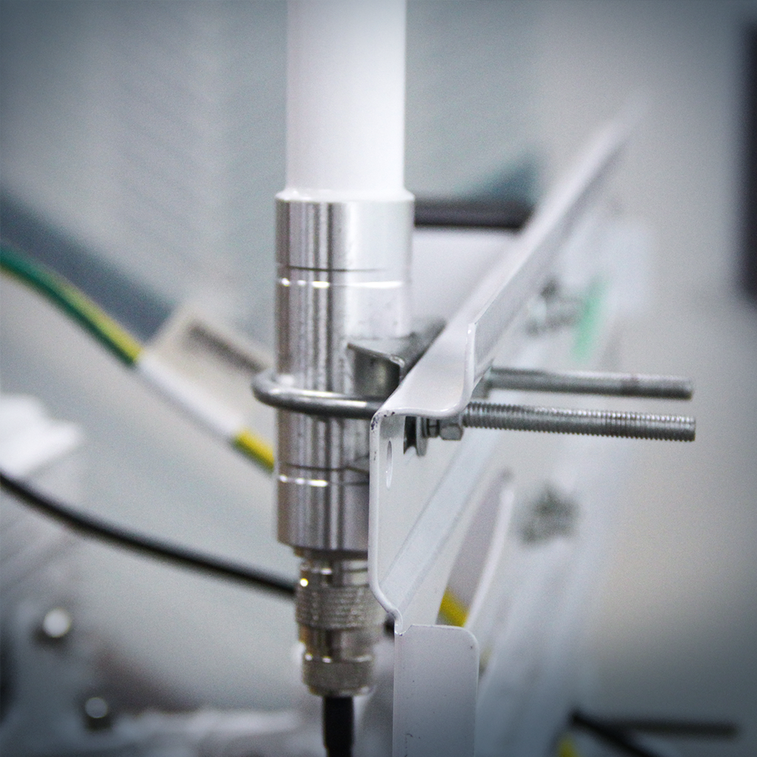

    5.8dB0 antenna Lora
    Pulsar Cable 10m
    Lightning arrestor
    Grounding Wire

    Installation instructions [download]

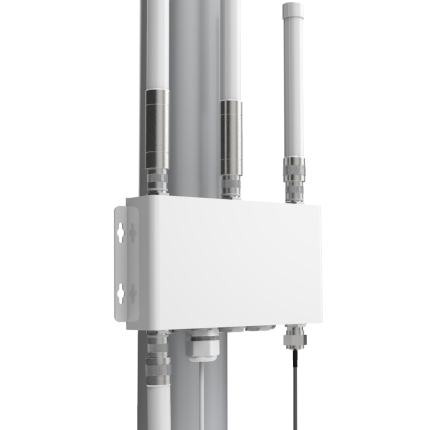

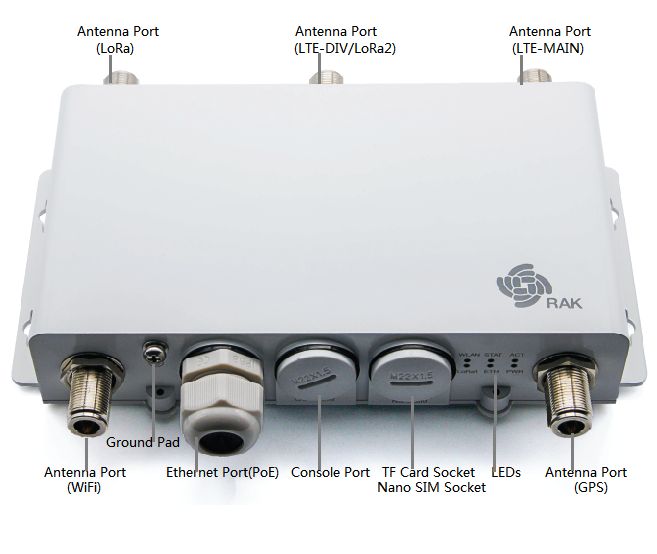

  • Enterprise-grade network gateway with the ability to be customized.
    Full LoRaWAN™ Stack Support 1.0.2
    Multiple Radio Support: LoRa (one or two concentrators), LTE , Wi-Fi, GPS
    LoRa Packet Filtering (Node whitelisting)
    Built-in Full LoRa Server
    Mosquito Broker (MQTT v3.1) with TLS encryption support
    Supports Power over Ethernet (PoE), IEEE 802.3af/at Class 4 Compliant, 48V
    IP67/NEMA-6 industrial-grade enclosure with cable glands
    The gateway can be configured at AU915 or AS923 as required.

    Data Sheet [download]
