Water Pressure Sensor LoRaWAN

by Farmo
Original price $349.00 - Original price $349.00
Original price
$349.00
$349.00 - $349.00
Current price $349.00
Click option below: LoRaWAN

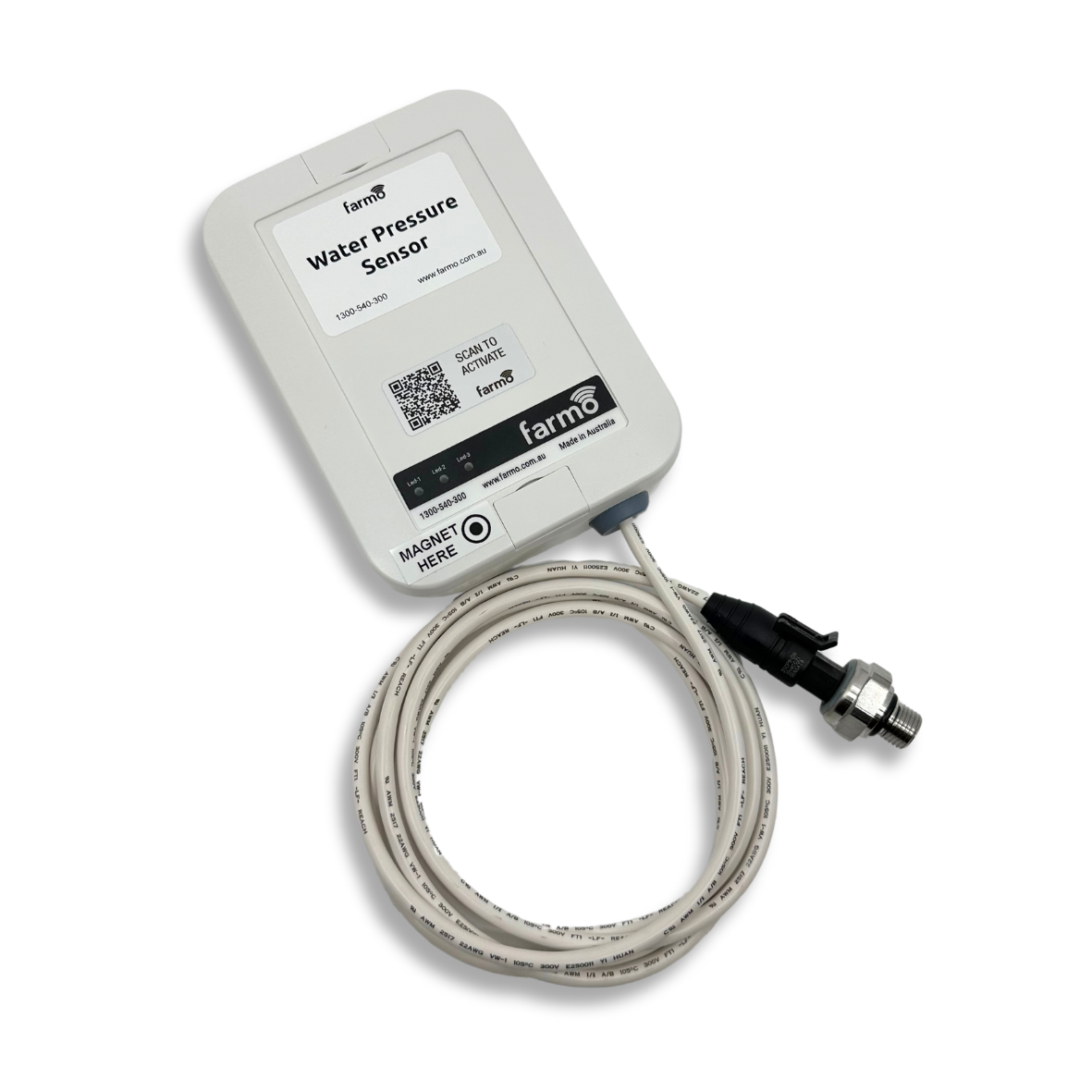

Get notified when your water system or pivot irrigator starts, stops or loses pressure, with the Farmo Water Pressure sensor. Get multiple readings per day and send alerts to your phone or email whenever trigger conditions are reached.

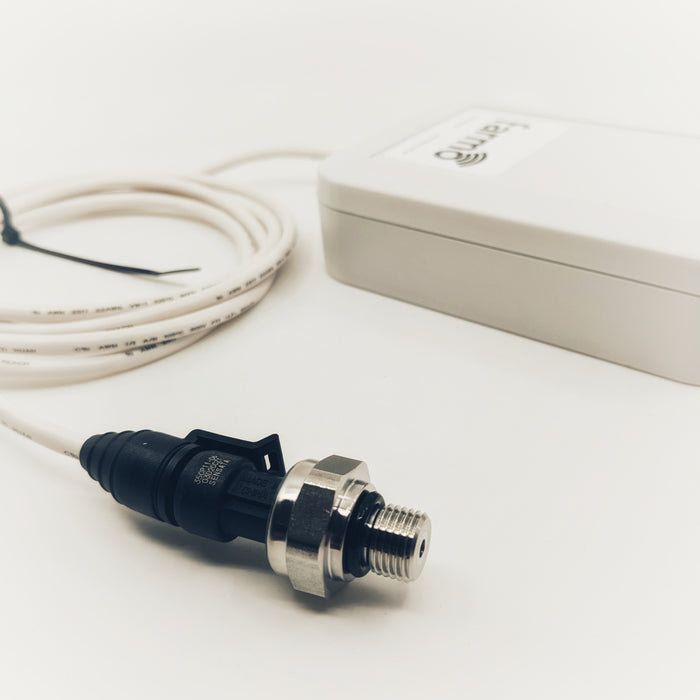

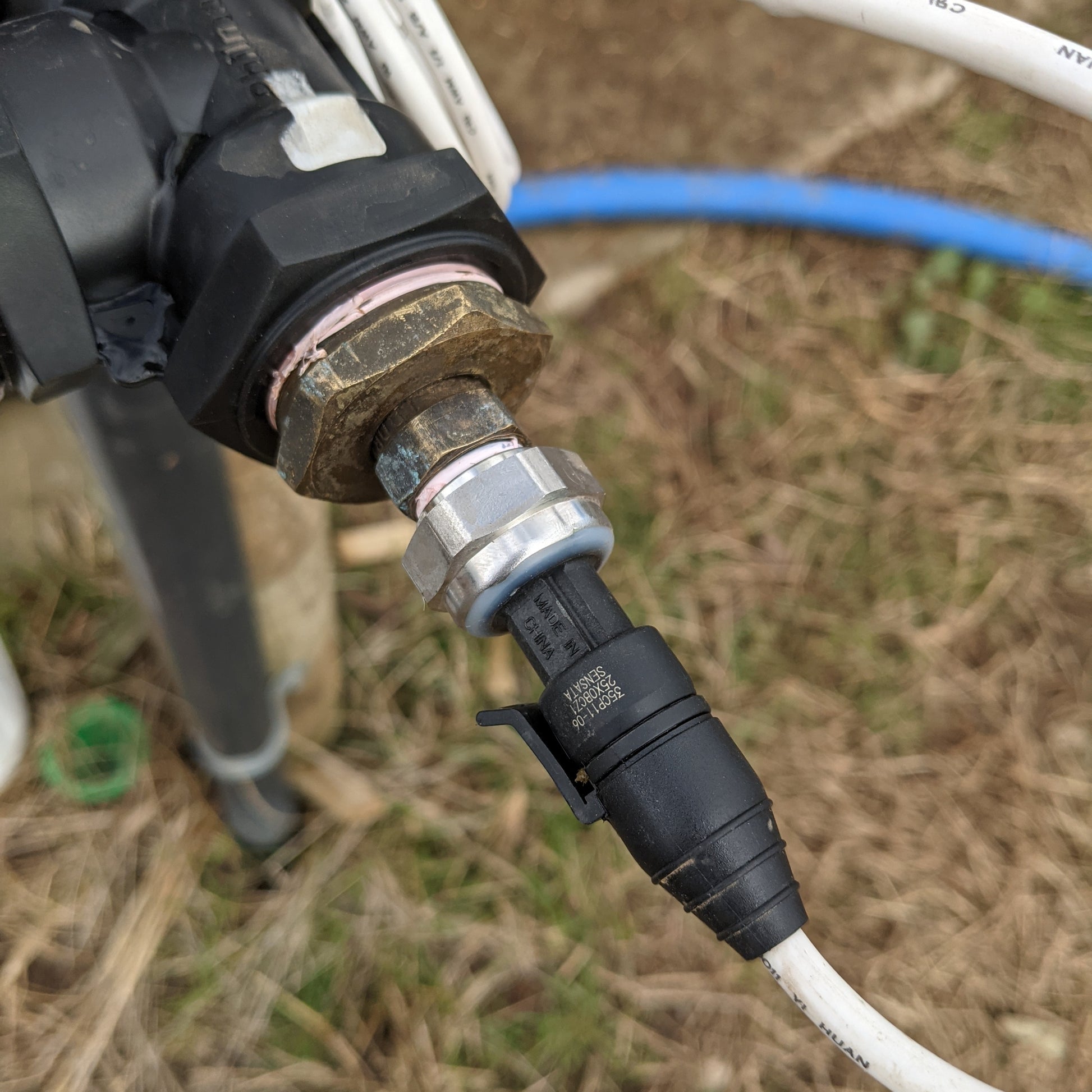

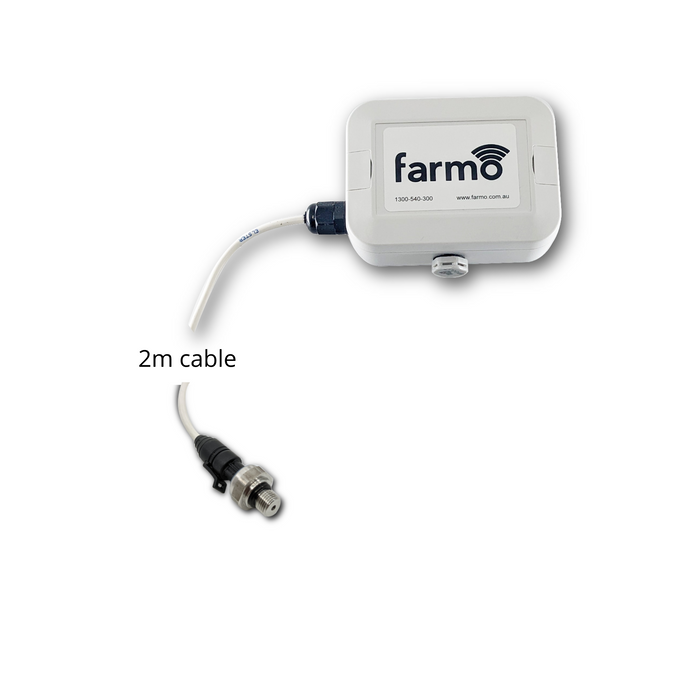

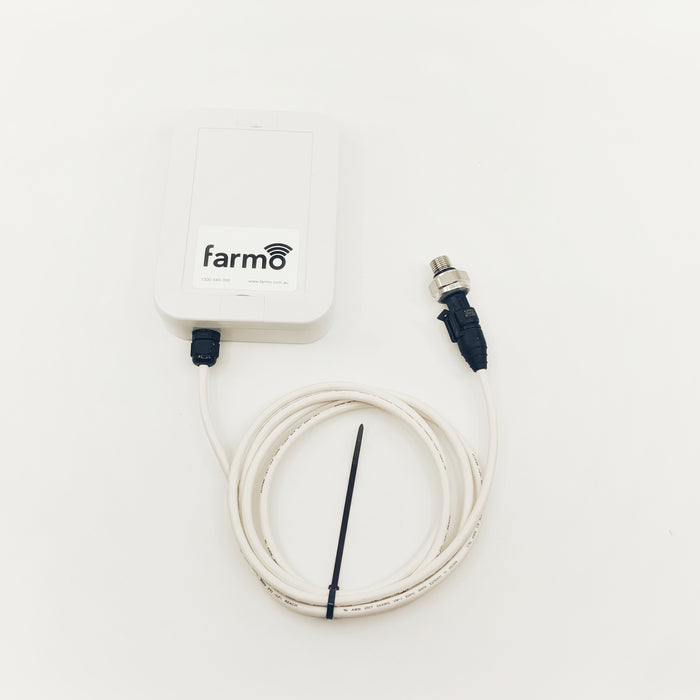

The sensor attaches directly in line on the pipe at a tee or nipple with G 3/4 thread or adaptor as required. The waterproof connector and 2m cable allow the comms enclosure to be placed in a higher position for better signal reception.

Out-of-the box configured for instant set up and visualisation on the Farmo dashboard.

The choice of options includes LoRaWAN (cheaper annual susbcription but needs a gateway) or NB-IoT (works anywhere you get mobile reception). We explain the choice of technologies in detail elsewhere in the website.

Options: LoRaWAN or NB-IoT

**note the NB-IoT version is on backorder for 4 weeks

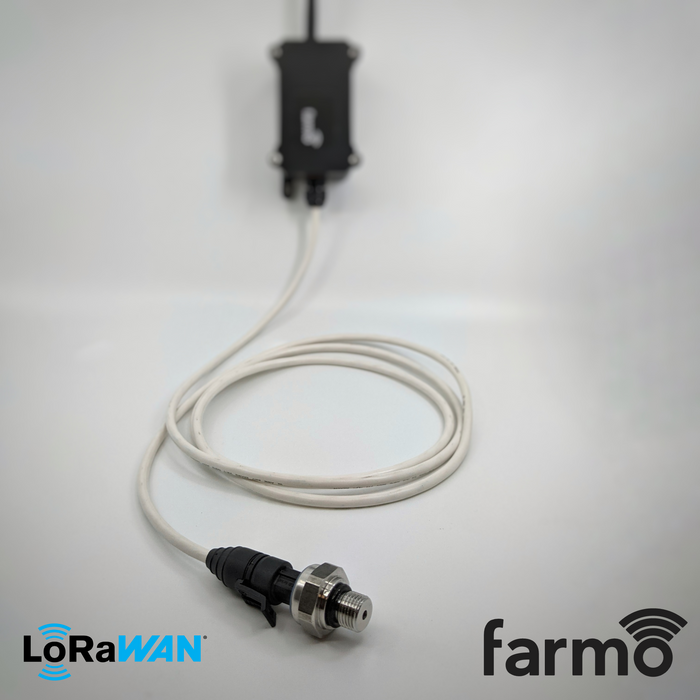

LoRaWAN

LoRaWAN coverage required
AS923 standard (AU915 available upon request)
LoRaWAN data subscription required

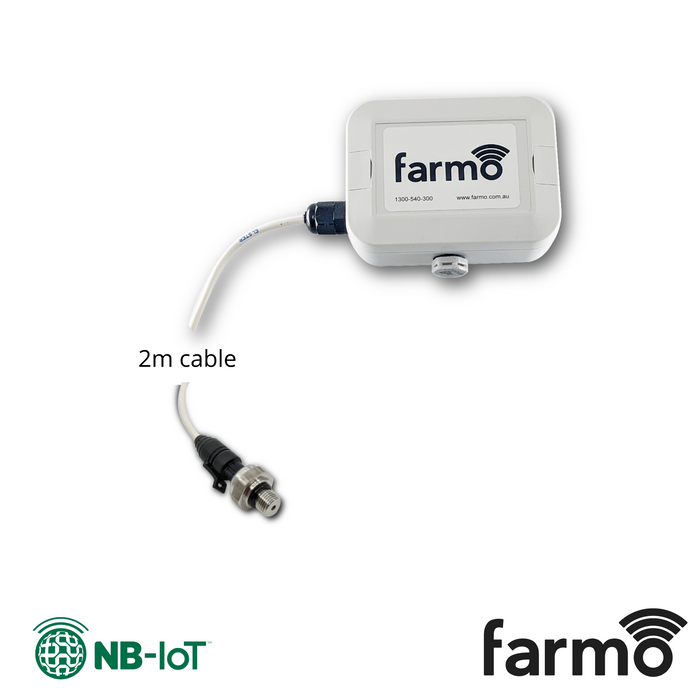

NB-IoT
see notes on NB-IoT coverage
no gateway needed
NB-IoT data subscription required

Sensor Details

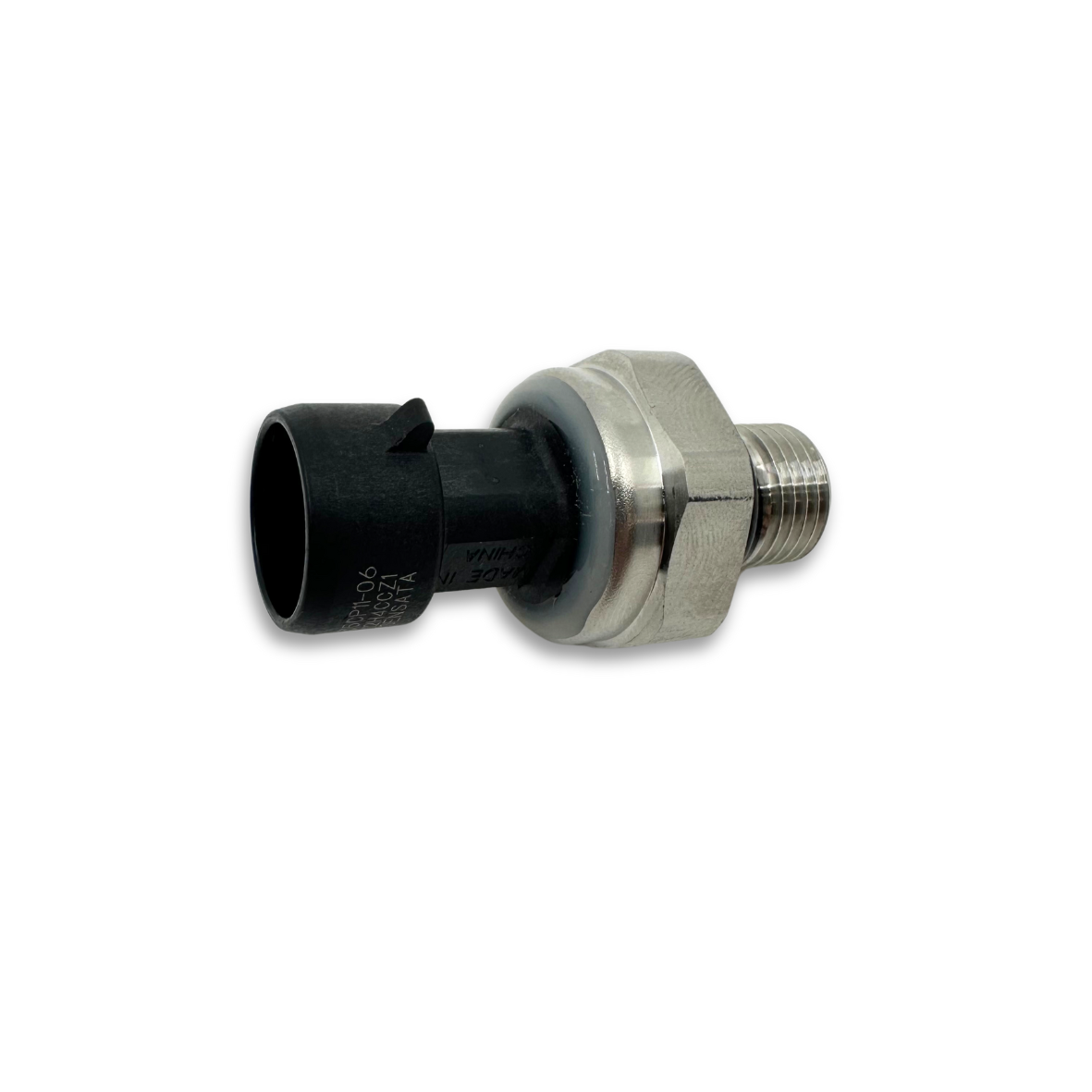

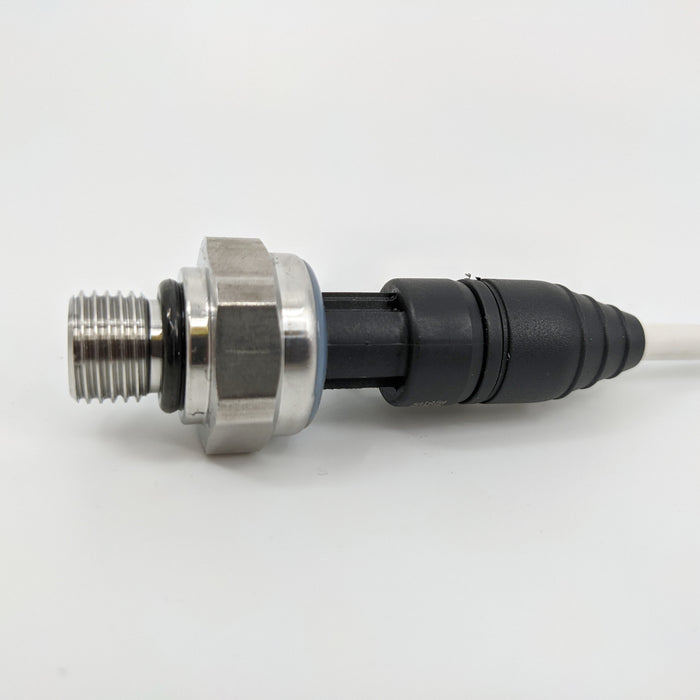

  • Industrial Pressure Transducer
  • 0-6 Bar gauge pressure (0-87 psi)
  • High accuracy: +/-1% FS
  • Stainless Steel
  • Thread G 1/4 male
  • 2m cable
  • IP67 (sensor and housing)

Specifications

  • LoRaWAN or Telstra coverage required
  • AS923 standard (AU915 available upon request)
  • Default 1 hour readings
  • 4000 mAh Li/SOCl2 non-rechargable battery for long-term use
  • Farmo dashboard subscription to view data and set alerts or purchase device only option.

Farmo dashboard

  • Display latest pressure reading
  • Set custom alerts via email or sms when pressure drops or reaches a certain level
  • Longitudinal graphs display pressure over time

Application areas

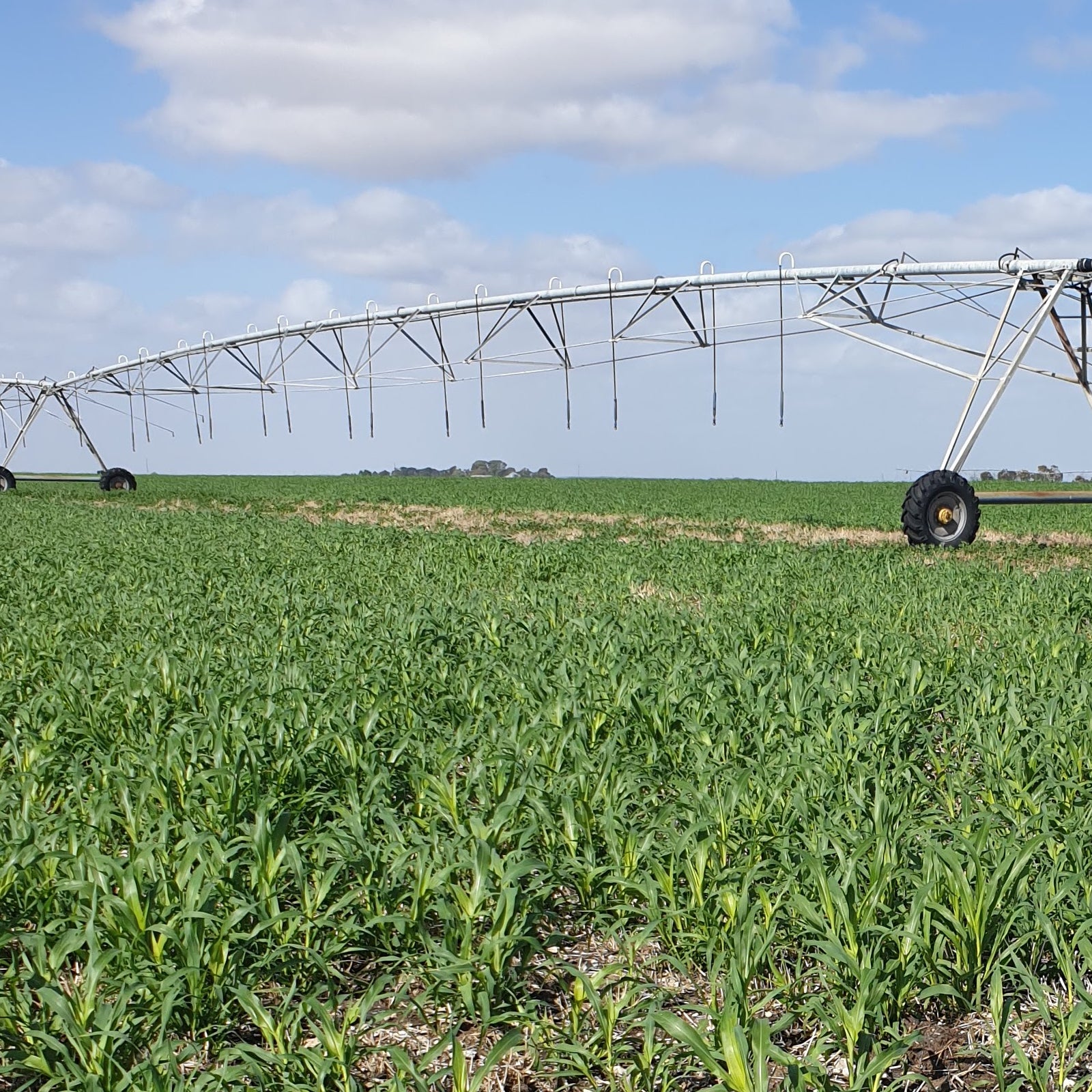

  • Pivot irrigators
  • Any air or water system with variable pressure up to 87 (psi). Higher max pressure sensor on request.

Care and maintenance

  • No maintenance required if carefully installed.

Warranty

  • All Farmo products include a 12 month warranty as standard.

Assembly Instruction [download]
