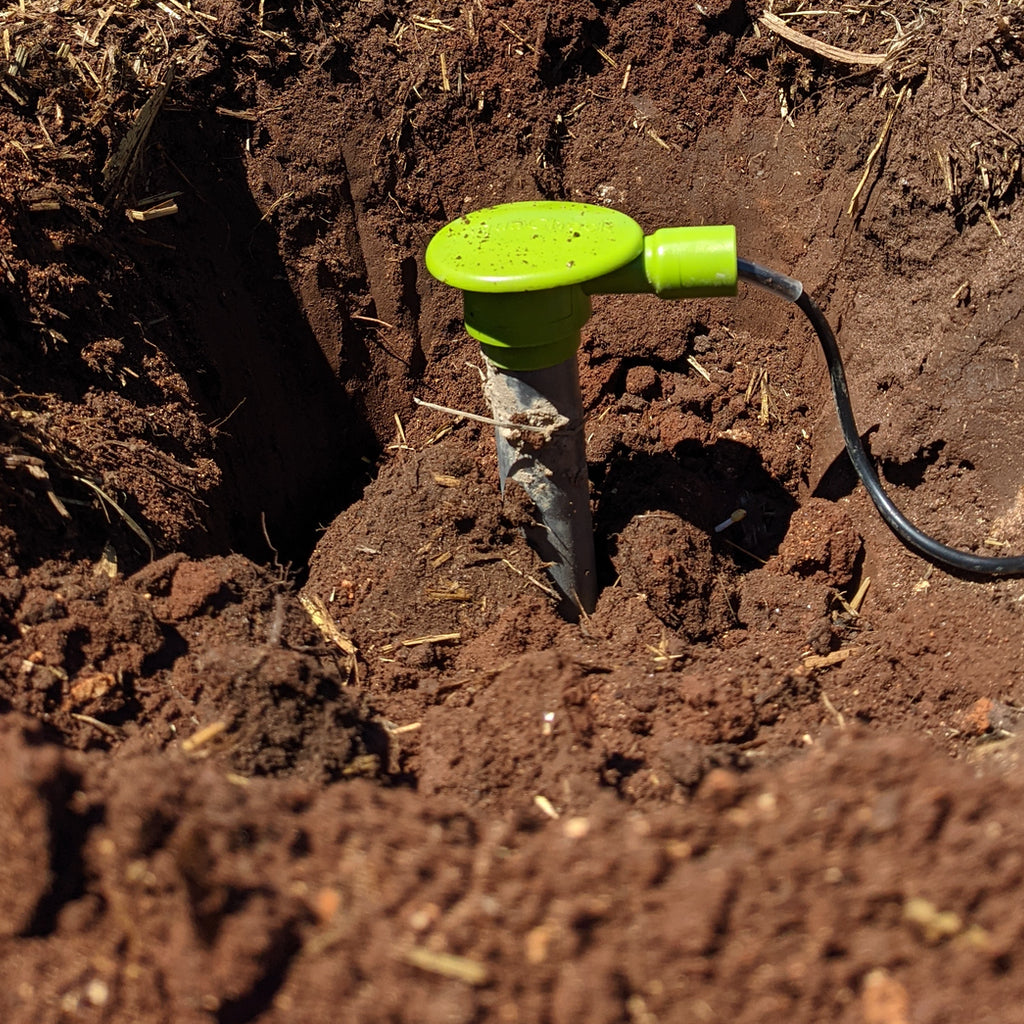

Multi-depth Soil Moisture and Temperature Sensor 60cm

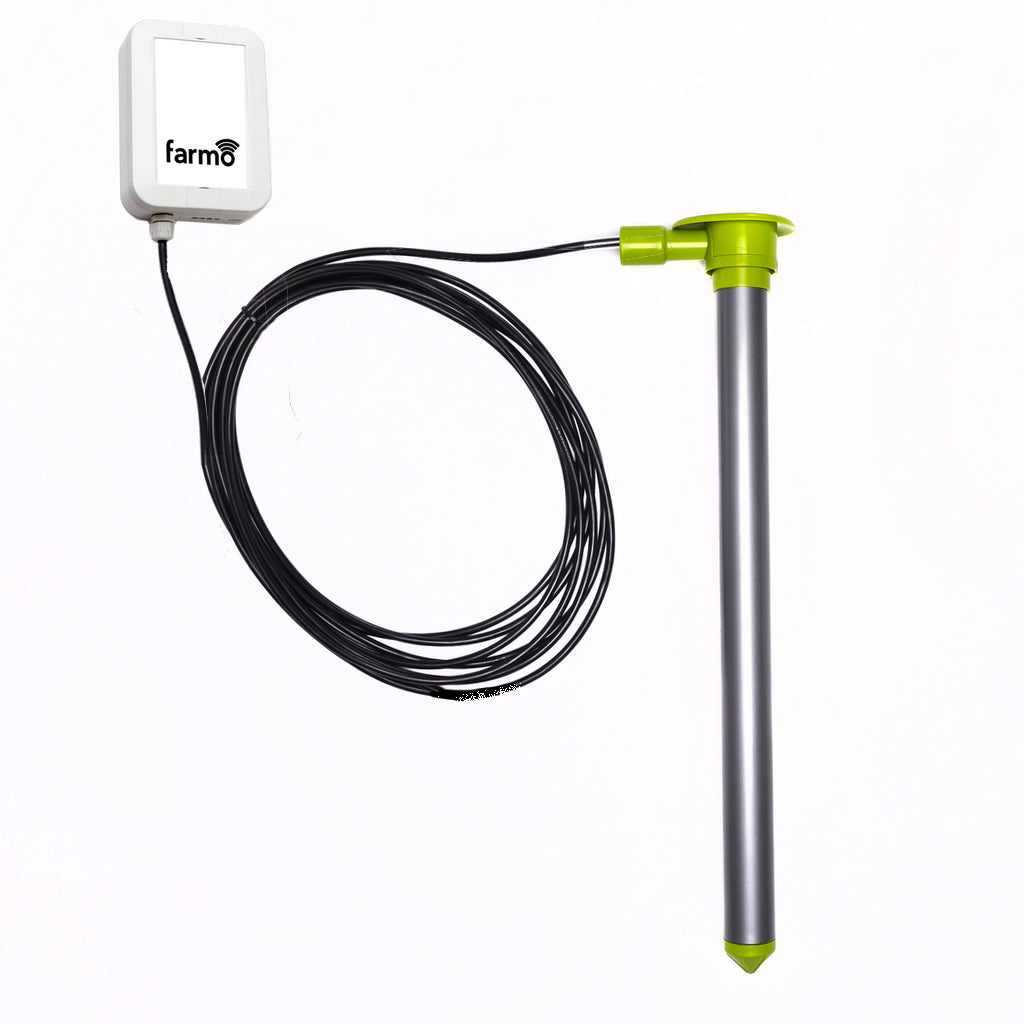

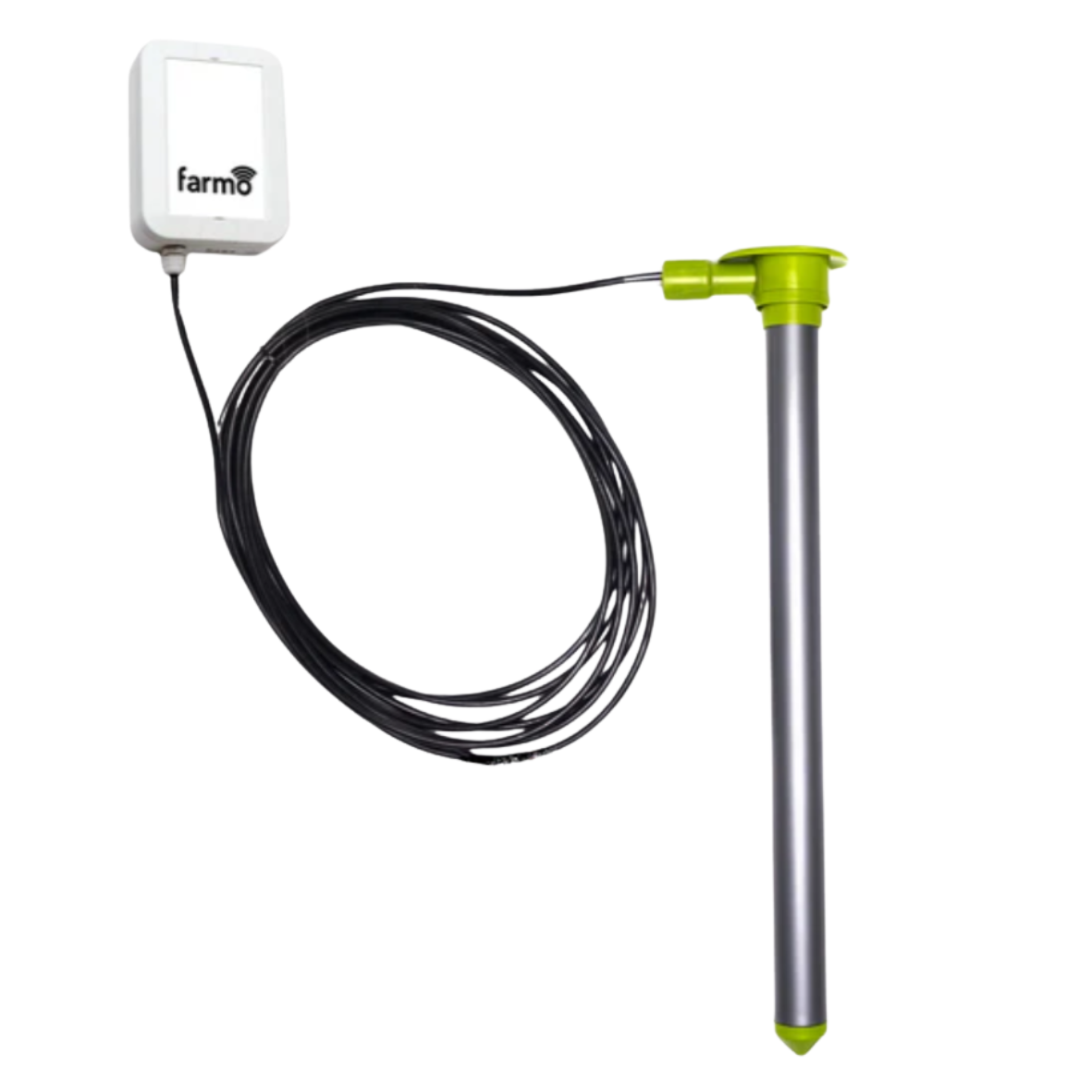

The Multi-depth Soil Moisture and Temperature sensor includes a 60cm Aquacheck probe and a Farmo NB-IoT telemetry module that sends data to your dashboard in real time.
Increase yield, improve crop quality, save water and electricity costs by measuring soil moisture and multiple depths and controlling more accurately the water applied to your crop or pasture.
Set up to receive multiple readings every day to monitor short term fluctuations and analyse long term trends.
The AquaCheck factory calibrates these probes to read 0 in air and 100 in water. Please note the value returned IS NOT a % of soil moisture, but a scaled frequency unit (SFU). It is also not linear with moisture. If conversion is required to read moisture in volumetric units, then a “soil calibration formula” will need to be used. User must note that soil calibrations are very specific to the particular soil type. If the user requires very accurate volumetric readings, then an “in-filed” calibration would be highly advised.
Out-of-the box configured for instant set up and visualisation on the Farmo dashboard.
Sensor Specifications

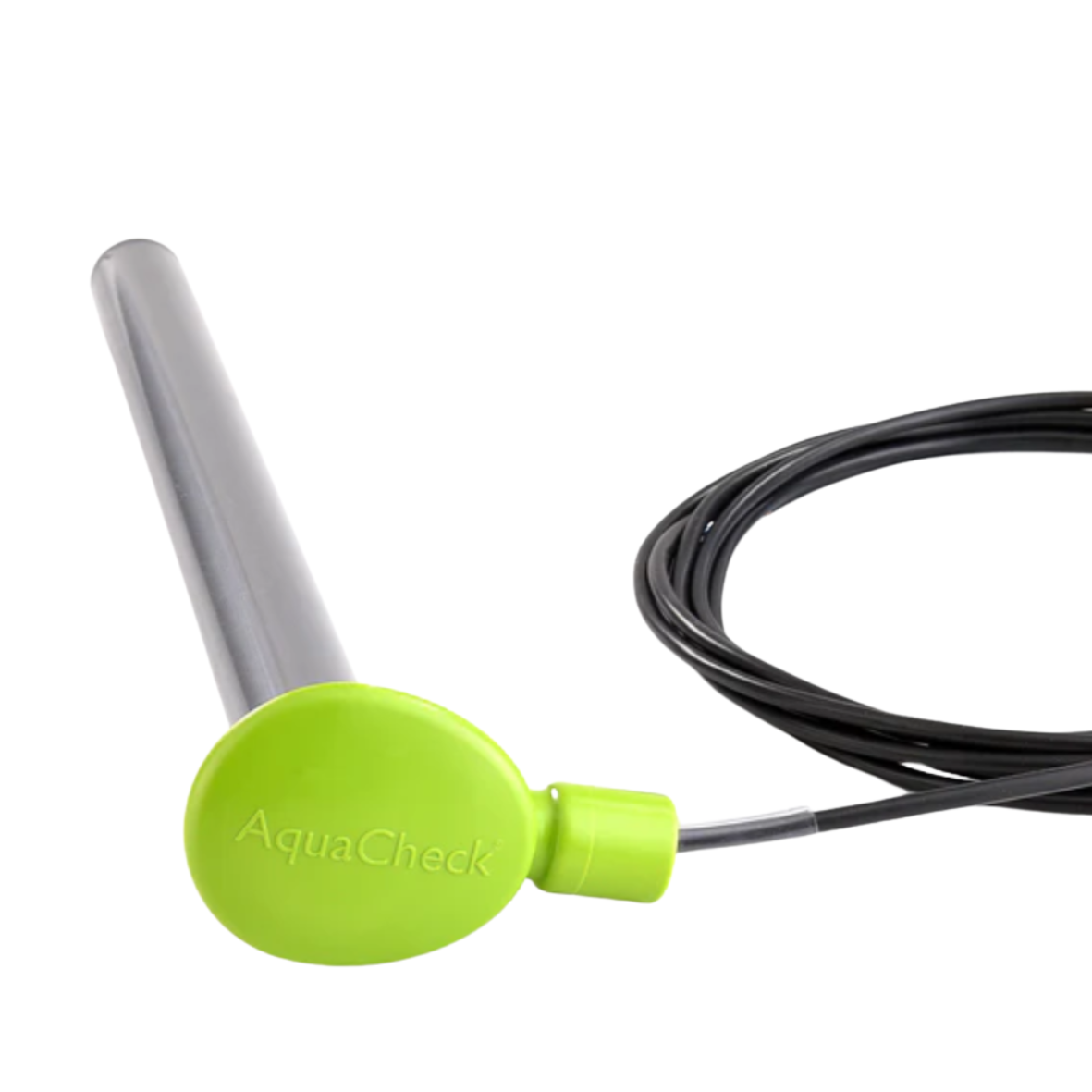

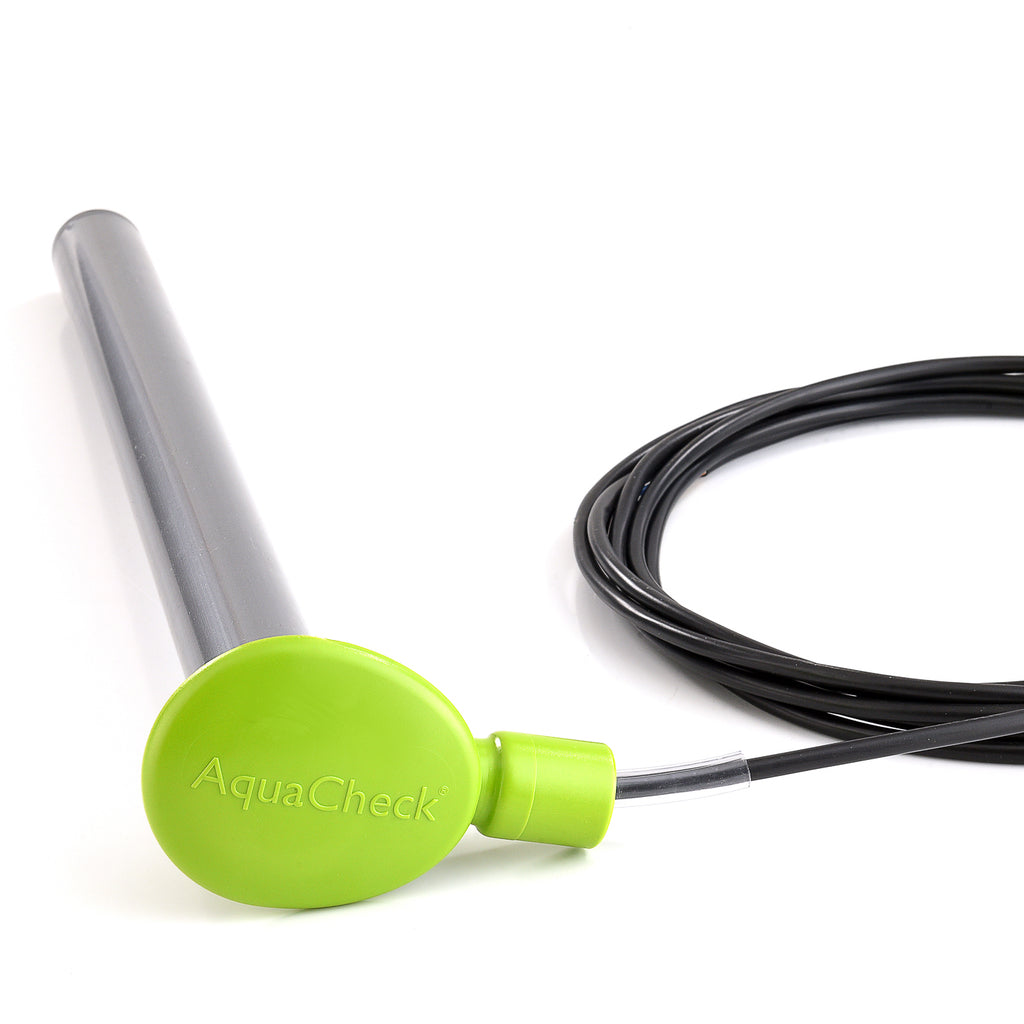

- A capacitance based continuous logging probe.
- Probe lengths from 600mm standard (contact Farmo directly for various options available).
- Shaft diameter: 32mm.
- Compliancy: CE, FCC certified.
- SDI-12 (serial data interface, 1200bd)
Technical Specifications
- Supplied with a 6m 3-core 0,5mm thick cable.
- Sensor spacing: every 100mm
- Sensor resolution: Approximately 13 bits.
- Temperature sensor: 0 to 51 oC, steps of 0.2 Degrees.

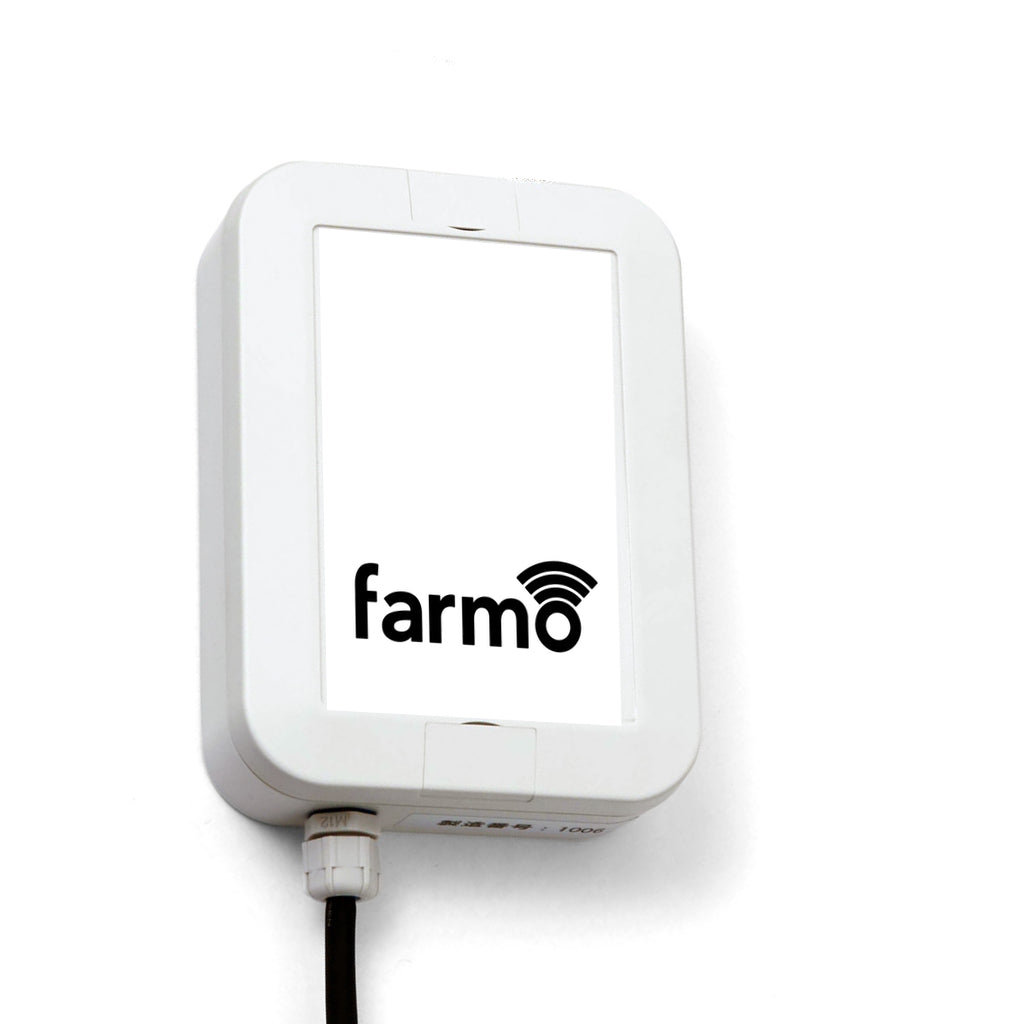

Communication Specifications
- LoRaWAN coverage required
- AS923 standard (AU915 available upon request)
- Default 1 hour readings
- 4000mAh Li/SoCL2 non-rechargeable battery for long term use
- Requires a Farmo subscription to view data and set alerts
Farmo dashboard
- Display latest soil temp and moisture reading
- Set custom alerts via SMS or email when trigger levels reached
- Longitudinal graphs display results over time
Application areas
- Agriculture, Irrigation
- Environmental monitoring
Care and maintenance
- If carefully installed no maintenance required.
Warranty
- All Farmo products include a 12 month warranty as standard.
Installation Instructions: [download]
