$15 per device/month (ex GST)

Farmo IoT Switch

$499.00 AUD
$499.00 AUD
Tax included.

The Farmo IoT Switch gives you real-time remote control of almost any pump, motor, engine, or generator via the Farmo App from anywhere. With a built-in cellular SIM, four flexible control modes, and the ability to link to other Farmo sensors for full automation, it's the most versatile remote switching solution in the Farmo range.
Cellular NB-IoT
IP67 Waterproof
240 > 24V DC 1A Power Supply Adapter
Email & SMS Notifications

4 control modes are available:

  1. Manual Run Time
  2. Link to sensor
  3. Schedule
  4. Combo Mode (AND/OR logic to combine sensor condition with a schedule).

Once installed and activated via the Farmo App, it gives you complete remote monitoring and control from your phone.

Link it to a Farmo tank sensor, soil moisture probe, or any other Farmo device to build a fully automated system that runs itself.

Data Includes:

  • Switch Status (On/Off)
  • Digital Input (Open/Closed)

Alerts:

  • Switch On Time (mins)
  • Switch Off Time (mins)
  • Digital Input Closed Time (mins)
  • Digital Input Open Time (mins)

A risk assessment must be completed and actioned before operating machinery remotely.

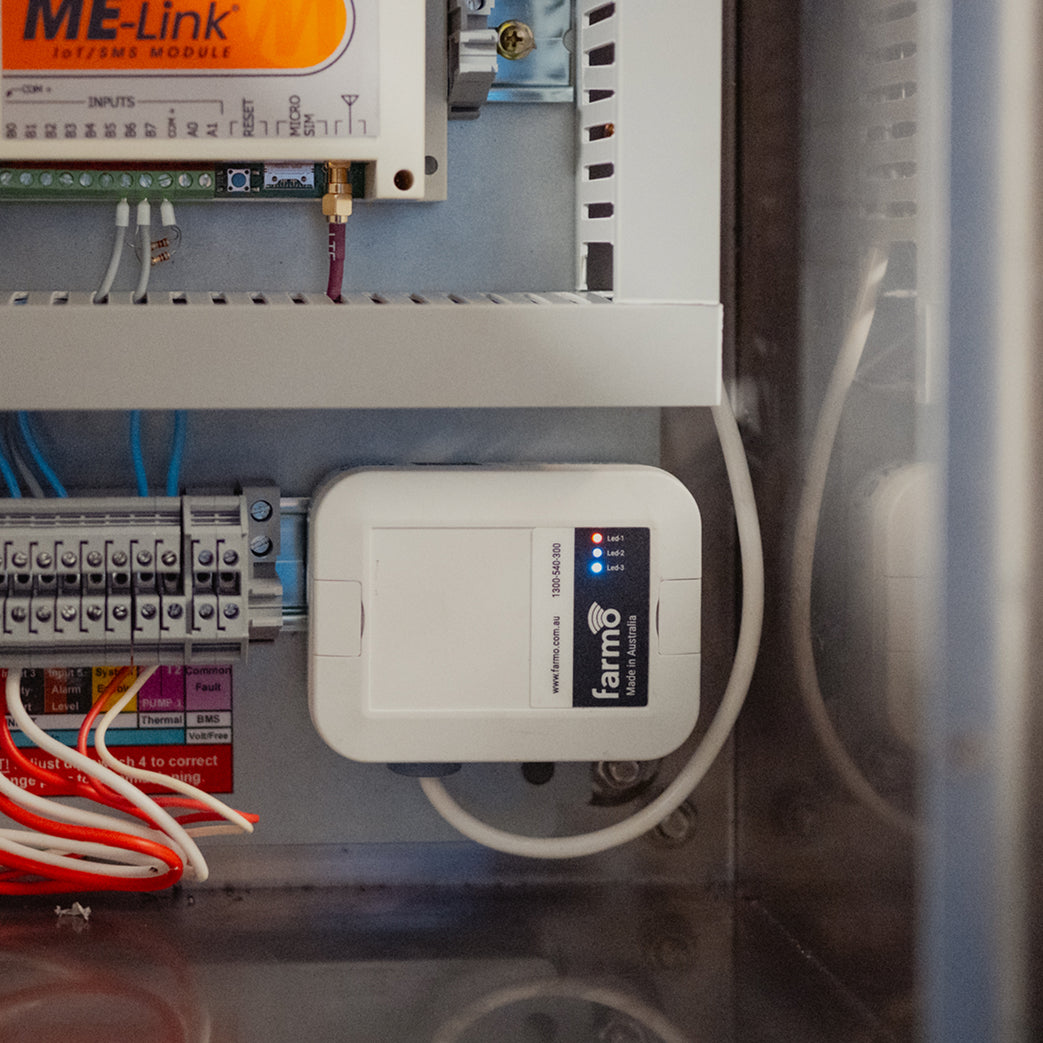

The Farmo IoT Switch is wired into the control panel, remote start, or circuit board of your pump, motor, engine, or generator. Alternatively, a licensed electrician can install a relay/contactor to control a higher voltage power supply.

The relay switch relay status is controlled by the Farmo App and the digital input feeds the current state of the equipment back to the Farmo App in real time. The built-in NB-IoT/Cat-M1 SIM card connects over the cellular network, and the device communicates with the Farmo App using its real-time MQTT protocol. From the app, you can control the equipment in any of four modes: manual, scheduled, sensor-linked, or a combination of triggers.

Assembly Instructions
Product dimensions 20cm x 11cm x 5cm
Sensor 1x Relay Output, 1x Digital Input
Capacity 24V DC
Connectivity Cellular (NB-IoT/Cat-M1)
Network coverage required Yes. Telstra (default), Optus and international
Waterproof IP67
Power source 240 > 24V DC 1A Power Supply Adapter
Subscription required Yes

Farmo devices are covered by a 12 month back-to-base warranty. After the standard warranty period expires we apply a pro-rata warranty up to 24 months.

Keep plugs and connections clean and dry

How Our Customers Use Farmo to Stay Ahead

Start and Stop Your Pump From Anywhere

Whether you're in town, on another property, or at home on the couch, open the Farmo App and switch your pump on or off instantly.

Automate Tank Filling Based on Water Level

Link the IoT Switch to a Farmo Water Tank Level Monitor and set it to automatically start the pump when levels drop and stop it when the tank is full, even if the pump and tank are hundreds of kilometres apart.

Scheduled Control

Programme irrigation or pump cycles to run at specific times of day through the Farmo App. Combine schedules with sensor triggers for total control.

Know the Real-Time Status of Your Equipment

The digital input reports the actual state of your pump or motor back to the Farmo App in real time. Know instantly whether your equipment is running, stopped, or has tripped,without driving to site.

$15 per device/month (ex GST)

farmo app subscription

Purchase your device once, then choose a monthly subscription per device for connectivity, data, alerts, and app access. Each plan includes the Farmo App, access for up to 5 users, all connectivity fees, unlimited email alerts, 20 SMS alerts per device each month, scheduled reports, and data downloads.

The Farmo App Experience

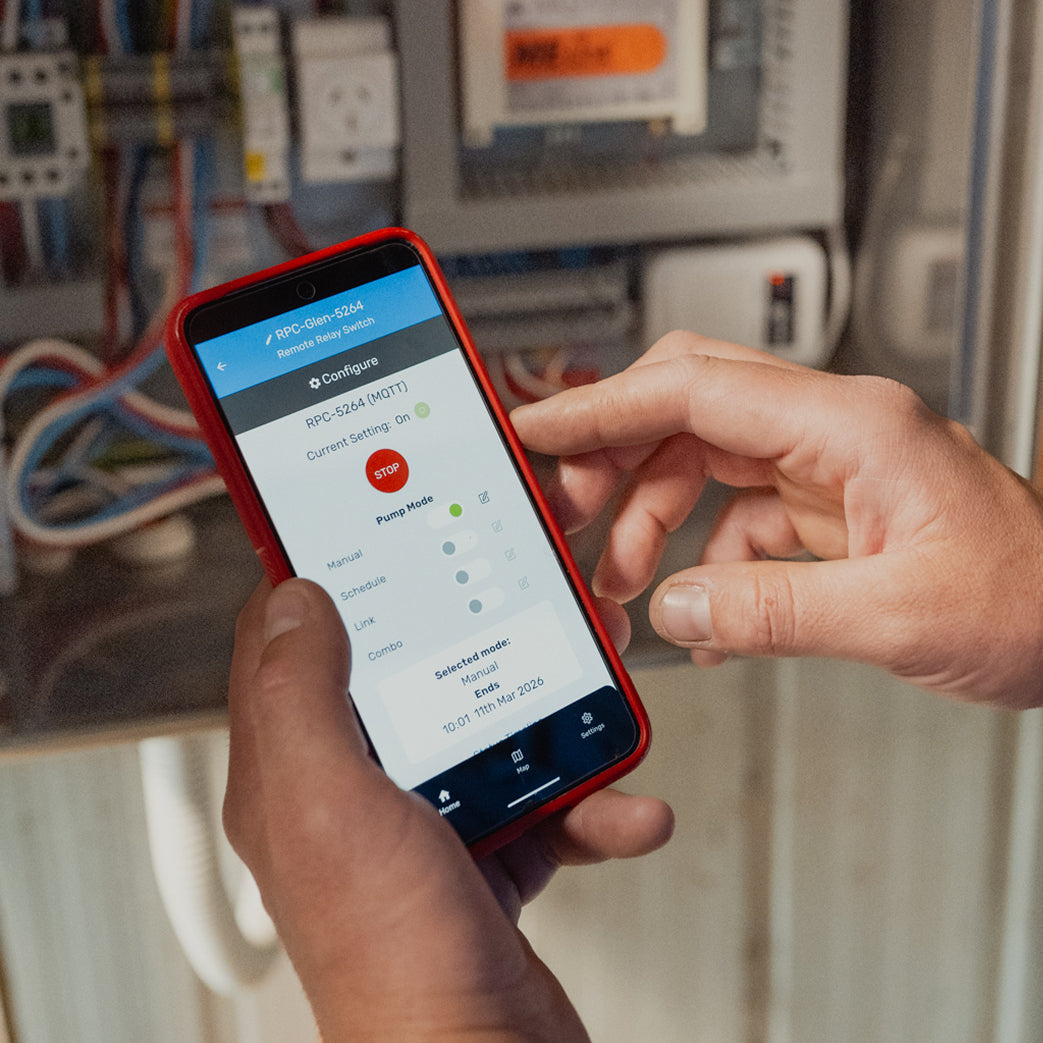

Live Pump Visibility

Switch your pump or powered equipment on or off from anywhere, at any time, directly from the Farmo App. See the current status of your devices across your property in one unified feed.

Phone screen displaying a notification from 'Farmo' about water level meter status.

Real Time Alerts

Choose from manual control, time-based scheduling, sensor-triggered automation, or a combination of all three. Configure and adjust your settings in the app and get real time alerts to your phone.

History & Status Tracking

Review a full log of when your pump ran. Use the data to fine-tune your irrigation schedules, understand water usage patterns, and catch anything unexpected.

Trial The App

FAQs

Yes, as long as there’s mobile network coverage (Telstra by default) the device will work. Data is sent over the specialised long distance CatM1/Nb-IoT part of the 4G and 5G networks, so you will find coverage goes further than voice calls on handsets.

Controlled via the Farmo App, the Farmo IoT Switch can be set to operate in the following modes:

  • Manual control: Switch on and off directly from the Farmo App
  • Scheduled control: Switch on and off automatically based on schedules set via the Farmo App
  • Sensor-based control: Switch on and off based on water tank levels or soil moisture
  • Combined triggers: Use a mix of conditions - for example, only switch on when tank levels drop and it’s within a scheduled time window

All modes are fully configurable in the Farmo App, where you can also monitor real-time status and review historical data.

The Farmo IoT Switch can control almost any pump, motor, engine, or generator that has a low-voltage starting circuit (up to 24VDC). Common applications include three-phase bore pumps, diesel engines, irrigation pumps, and generators.

Yes. Unlike the Farmo Smart Plug 240, which plugs into a standard 15A 240V outlet, the Farmo IoT Switch must be installed by a licensed electrical contractor. It is wired directly into the control panel, remote start circuit, or circuit board of your equipment. If you need a DIY option for single-phase 240V equipment with a standard power outlet, the Smart Plug 240 may be more suitable.

Trusted by Customers

5.00
Installed the Relay Switch on a pump system 200 km away from town. Works perfectly with our tank sensors, with everything automated now. Really reliable connection and easy setup by our electrician.
James Ballarat, VIC
5.00
The relay switches and pump control have been great. The levels are easily changed on the Farmo app. The remote controlled pumps linked to the tank readers have kept good water levels and no waste. The water is tightly managed and the pumps run every day.
Keith Biloela, QLD
5.00
We’ve used the relay switch to control a mix of pumps and generators on our property. Simple to operate, and the peace of mind from being able to check status remotely is worth every cent.
Alex Narrabri, NSW
